Micro Valve 2

The Schmidt Valves part of the Endurablast range consistently lead the industry in providing an unbeatable combination of operator safety, performance, ease of use and durabilty.

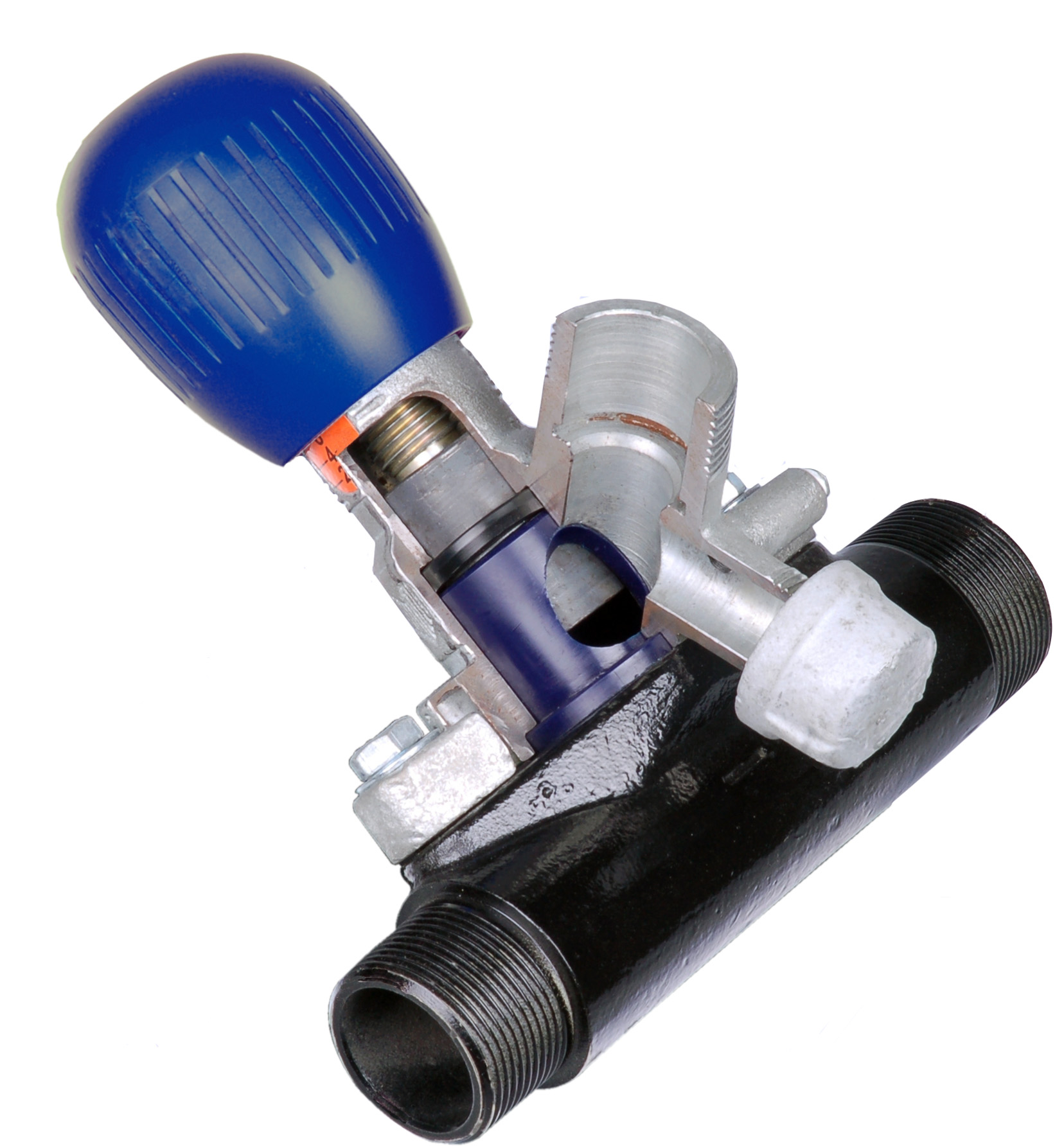

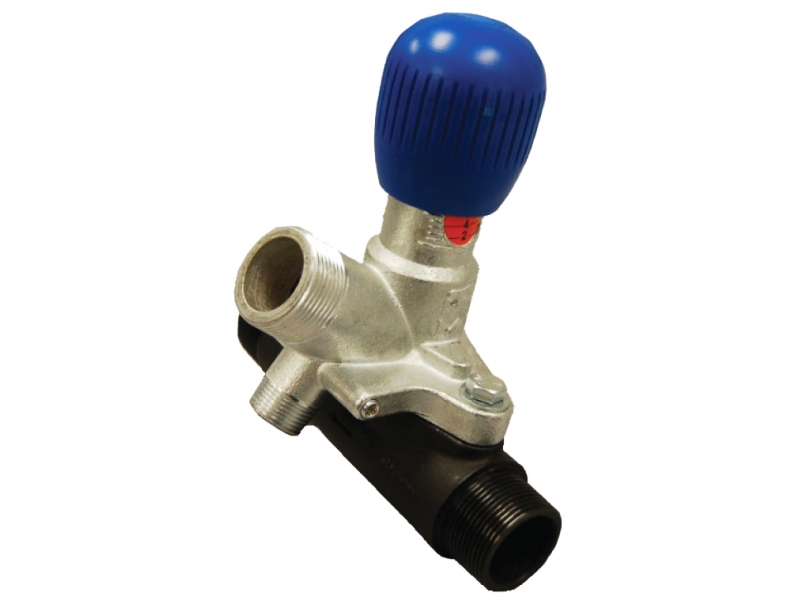

The MV2® (MicroValve 2) provides high precision metering of abrasive media to increase production and effectively control media use. The virtual position indicator allows the operator to quickly and easily set and maintain a consistent media flow rate, every time. A maintenance-friendly design allows for quick cleanout without removing or disassembling the valve. Most repairs can be made with the valve mounted on the vessel.

Schmidt valves part of the Endurablast range enable the operator to use significantly less abrasive and are engineered to maximize blasting productivity and reduce downtime.

Guaranteed Quote
within 48 Hours

Request a Quote

• Suitable for use with multiple abrasives.
• Highest quality components made from durable, abrasive-resistant materials.
• Body is quality carbon steel and base/nipple are high strength, hardened steel for durability and long life, even when using aggressive media.
• Internal porting and internal bypass line promote better abrasive flow (up to double that of other valves, depending on abrasive) and extend life of internal components.
• Cleanout port to remove obstructions without removing or disassembling the valve.
• Rebuild kit can be installed from bottom side of valve, while still mounted on vessel.
• Plunger is easy to remove and install with standard tools, does not require complete valve disassembly.
• Fits most brands of abrasive blasting equipment.

Benefits of Micro Valve 2 over against a standard Micro Valve:

  • Body/Base/Nipple - Body is Carbon Steel, Base & Nipple is high strength hardened steel extending the valve life, especially with aggressive media.
  • Bolt Holes - Sealed eliminating air leaks around bolts.
  • Internal Bypass Line - helping extend valve life, improving abrasive flow.
  • Knob - Integrated simplifying assembly and disassembly.
  • Media Connection - 1.1/4" NPT Male eliminating need for additional fittings.
  • Abrasive Flow Rate - High allowing up to 2x more abrasive depending on type.
  • VPI(Virtual position indicator) - Simple to set and maintain consistent media flow rate.
  • Knob Adjustment - Easy to use, more compact than other handle types.
  • Cleanout Port - clear obstructions without removing/disassembling valve.
  • Maintenance - Easy access, fewer components shortening rebuild  maintenance time.
  • Body Bolt - 3/8" x 1" - Simplifies assembly/disassembly

Specifications:
Body: Quality carbon steel
Base/Nipple: High strength, hardened steel
Sleeve: Polyurethane
Inlet Media Connection: 1 1/4" NPT
Piping Sizes: 1 1/4", 1 1/2"

Product Code Description Price
Micro Valve 2 POA
