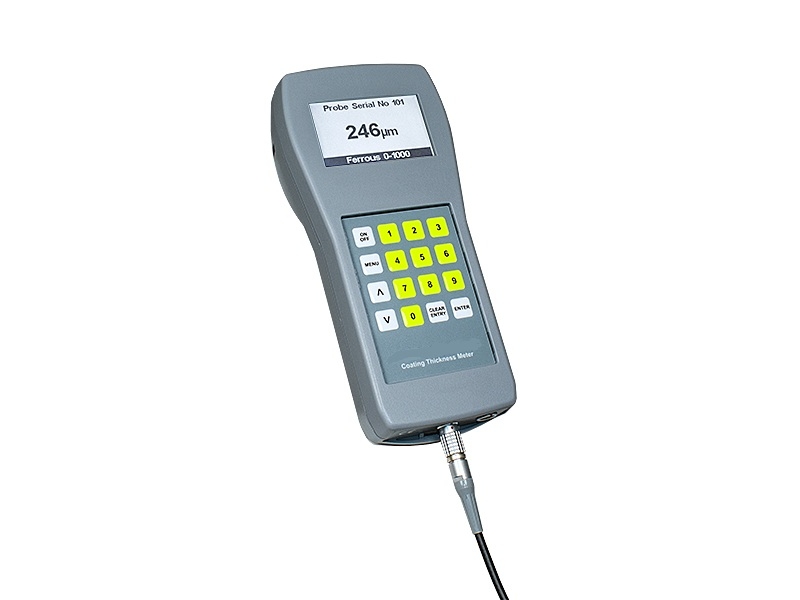

Coating Thickness Meter
The Paint Test Equipment Coating Thickness Meter easily measures all coatings on metallic substrates using the magnetic induction or eddy-current principles, ensuring the correct coating thickness has been applied.
It is one of the most advanced Coating Thickness Meters on the market, using up-to-date technology in a robust portable instrument and incorporating all the following user functions through a menu-driven back-lit display.
All models are supplied in an industrial foam-filled Carrying Case with flexible lead Measuring Probe (Ferrous and Non-Ferrous instruments have two Measuring Probes), set of 8 Calibration Foils and Zero Disk (Ferrous and Non-Ferrous instruments have two Zero Disks and C5003 Model has 3 Foils).
Guaranteed Quote
within 48 Hours
The USB PC Download Cable is available as an optional extra
CALIBRATION. Calibrate on any blasted profile or any shape of substrate using the Calibration Foils supplied.
CALIBRATION MEMORIES. The calibration settings for different substrates and shapes can be stored and recalled when required.
STATISTICS. Continually shows Mean, Number of Readings, Max/Min, Coefficient of Variation and Standard Deviation.
LIMITS. Pass and fail with audible and visual alarm.
METRIC/IMPERIAL. Select the measurement units that you require.
BATCHING. Measurements that are taken can be stored into batches which incorporate batch number, unique job number, and date and time. You can also go back to previous batches and look at the statistics and add or cancel readings from previous batches.
DOWNLOAD. Enables all measurements, statistics and out-of-limit readings to be downloaded to a computer either by batch number or job number into Microsoft Word or Excel.
The USB PC Download Cable is available as an optional extra
The Calibration Certificates with traceability to UKAS are an optional extra. The Certificates are supplied as hard copy and are available online through the Calibration Portal via our website. The Calibration Portal lists all your equipment calibrated by Paint Test Equipment, showing the renewal dates and enabling Calibration Certificates to be viewed at any time.
Contact us via the contact page on this website or call us, to set up and activate your link to the Calibration Portal.
ISO 2808: PAINT AND VARNISHES.
DETERMINATION OF FILM THICKNESS.
ISO 19840: CORROSION PROTECTION OF STEEL STRUCTURES BY PROTECTIVEPAINT SYSTEMS.
MEASUREMENT OF, AND ACCEPTANCE CRITERIA FOR, THE THICKNESS OF DRYFILMS ON ROUGH SURFACES
| Product Code | Description | Price | |
|---|---|---|---|
| Coating Thickness Meter | POA |
