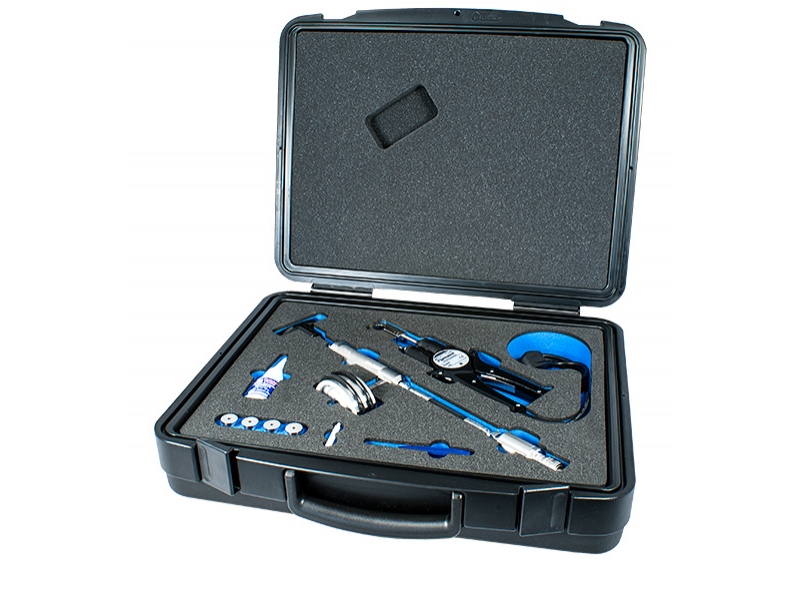

Adhesion Testing Kit
The Adhesion Tester is one of the most accurate and versatile adhesion testers currently available. It measures the adhesion bond strength of applied coatings with ease and precision.
The adhesion is measured by the tensile pull on a Dolly glued to the coating surface. The force is applied through the centre of the Dolly by a hydraulically loaded pin. This ensures an exactly central point-loading of the force.
Guaranteed Quote
within 48 Hours
Adhesion values are recorded by a pressure gauge giving a 1:1 pressure reading. This is made possible as the net surface area of the Dolly is equal to the surface area of the hydraulic piston bore.
Pressure reacted by the Dolly is the same as the pressure in the bore and is transmitted directly to the pressure gauge. The maximum value achieved at pull-off is recorded by a reset needle that is easily read on the large scale of the pressure gauge.
Connection to the stainless steel Dolly is easily made with a coupling socket and the pressure gauge is swivel-mounted allowing testing in any position. This is significant as coating breakdown invariably starts at positions that are difficult to reach during surface preparation and application. Ensures effective quality control with a non-destructive capability.
To allow the specification minimum to be proven, the dolly can be removed using the heated dolly remover supplied. If necessary, the dolly can be left in place for testing during service as part of a planned maintenance programme.
The Calibration Certificate with traceability to UKAS is an optional extra. The Certificate is supplied as hard copy and is available online through a Calibration Portal which we can set you up with via our website. The Calibration Portal lists all your equipment calibrated by Paint Test Equipment, showing the renewal dates and enabling Calibration Certificates to be viewed at any time.
You can request your Calibration Portal activation either by contact us from the contact page on this website, or by calling one of our sales staff who will set this up with you immediately.
Conforms to the following:
ISO 4624: PAINTS AND VARNISHES.
PULL-OFF TEST FOR ADHESION.
ISO 16276-1: CORROSION PROTECTION OF STEEL STRUCTURES BY PROTECTIVEPAINT SYSTEMS.
ASSESSMENT OF, AND ACCEPTANCE CRITERIA FOR , THE ADHESION/COHESION (FRACTURE STRENGTH) OF A COATING.
PART 1: PULL-OFF TESTING.
| Product Code | Description | Price | |
|---|---|---|---|
| Adhesion Testing Kit | POA |
