Innovating Safety & Productivity for the Corrosion Control Industry

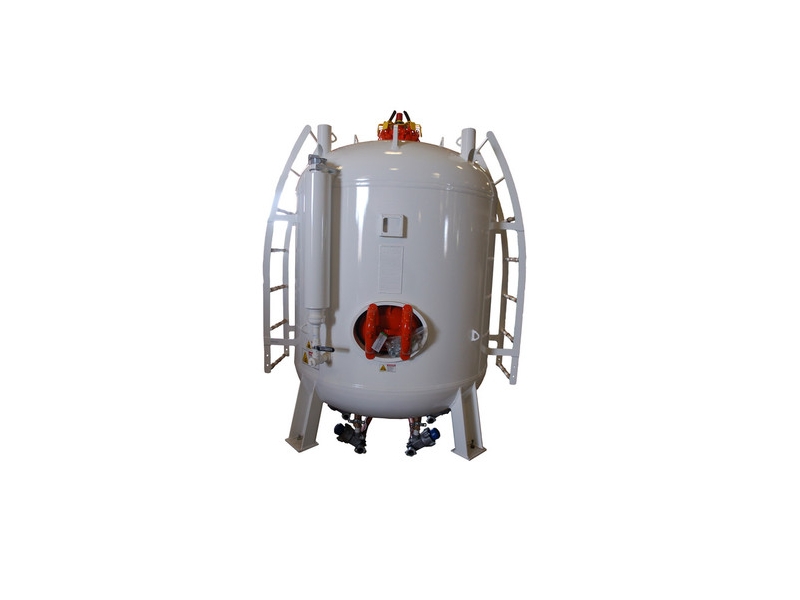

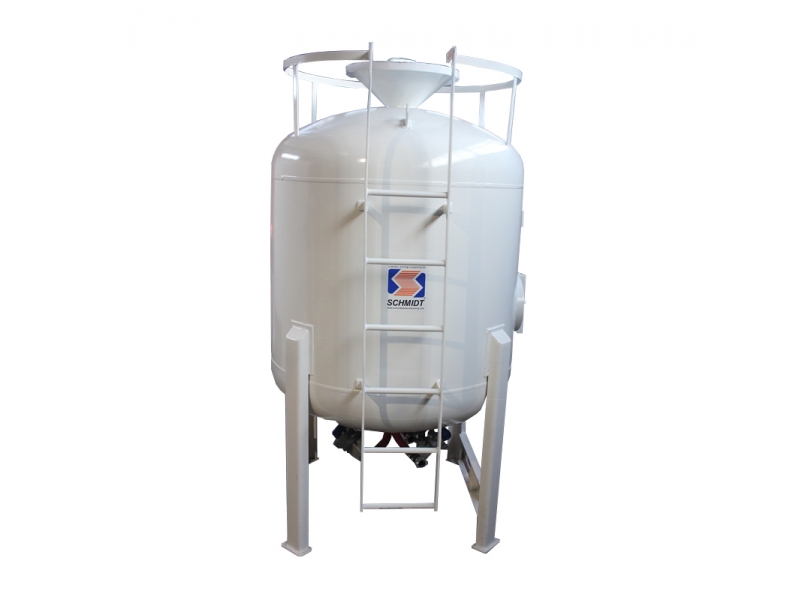

BulkKUBE Blasting System

Ushering in a new era of productivity for large jobs and revolutionising the abrasive blasting industry, the safety enhancing features of the BulkKUBE Blasting System include the controlled expansion nozzle (CEN) blowdown, which safely controls the expansion and velocity of exhaust air.

This system minimises the opportunity for dust abrasion of exhaust system components, dramatically reducing noise to safe levels during blowdown, allowing the operator to fully open the exhaust valve and safely depressurise a 160 cu ft unit in about 8 minutes.

Other safety features include a 3" flanged cleanout for easy emptying without heavy tools, the Halok closure safety system that prevents operators from improperly opening and closing the 10" closure, an Ergo-Ladder system for safe and comfortable access to the 10" closure and manway stay brackets which assist in easy/correct installation of the manway cover.

Available in 120 cu ft and 160 cu ft sizes.



Guaranteed Quote
within 48 Hours

Request a Quote

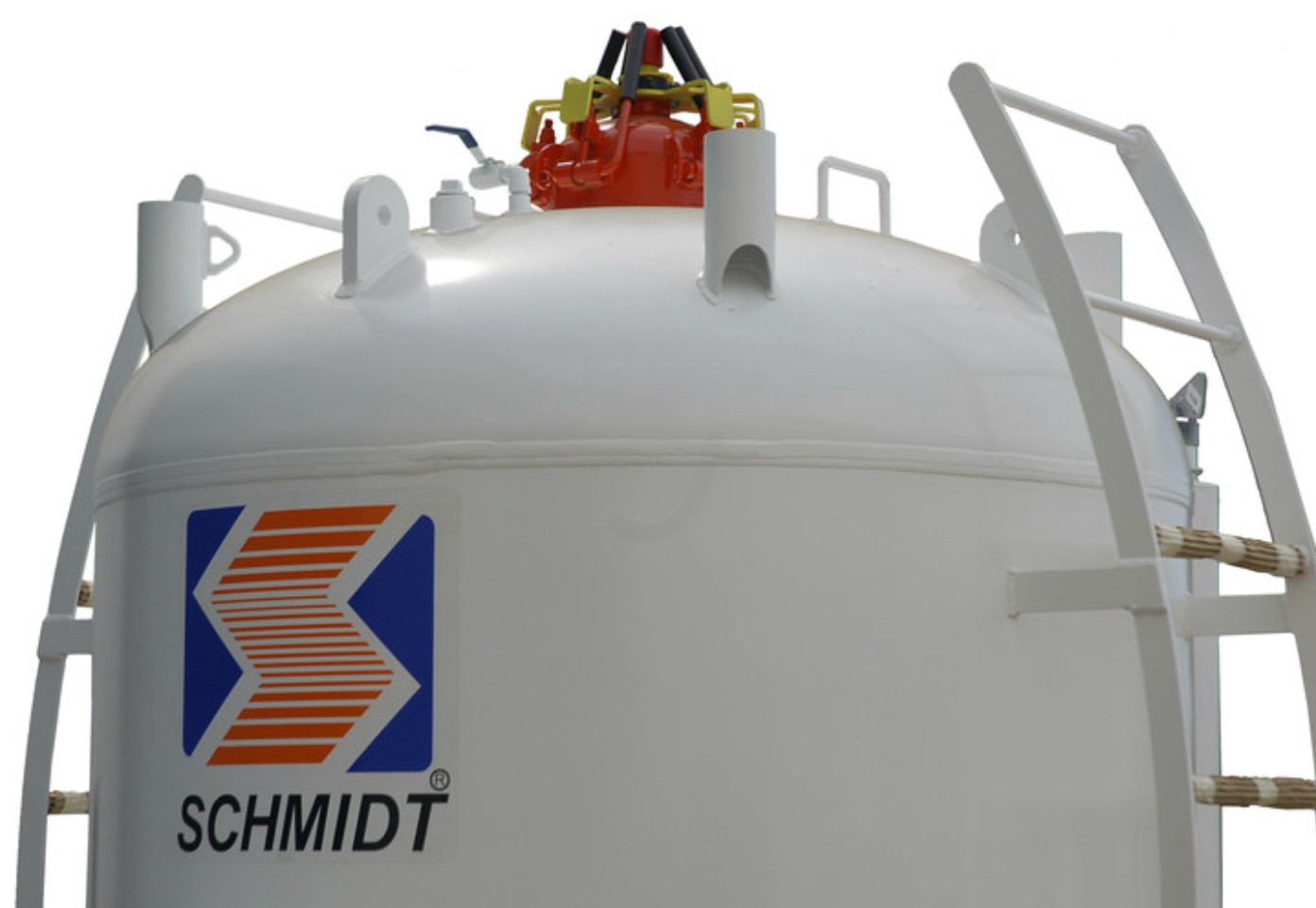

  • HALOK: Designed to ensure safe operation of the closure
  • Controlled Expansion Nozzle (CEN): Reduces the noise level of blowdown process to 92 dba* (which is the equivalent to traffic noise)
  • The CEN also prevents frost buildup, which has been reported to retain pressure on the vessel, creating safety hazards
  • Ergo-Ladder: Makes closure access safer and more comfortable
  • Grab handle and point of attachment for fall protection

Available in 120 cu ft and 160 cu ft sizes.

  • Normally closed, fail-safe valves and controls
  • High flow auto air valves standard for maximum productivity
  • Standard 1600 cfm moisture separator for consistent abrasive flow

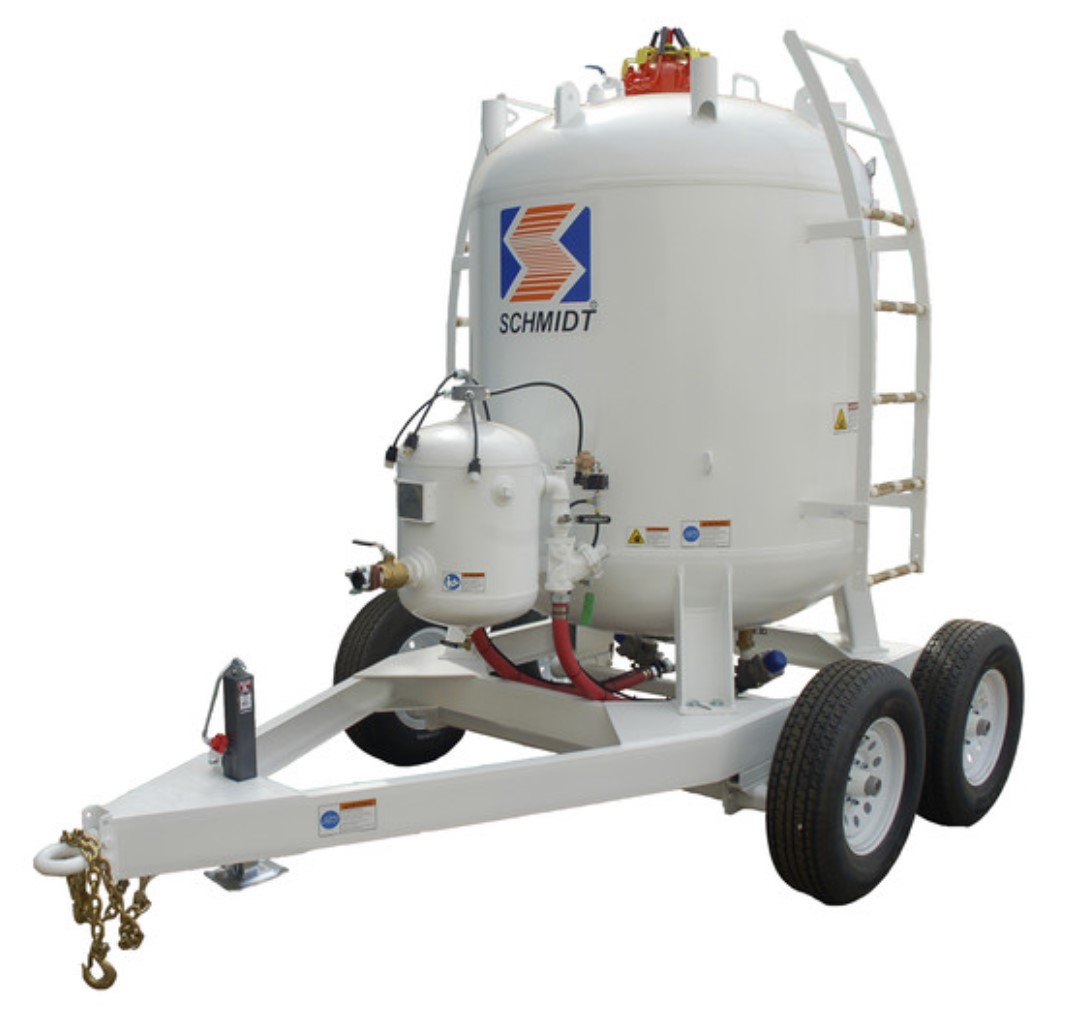

  • Available as stationary or mounted on highway and yard trailers
    • Skid and Fork Pocket Skid options
  • Standard 150 psi ASME code pressure vessel
  • 12” x 16” manway
  • Optional bag rack with pipe stubs for abrasive loading
  • 3” bottom flanged port for easy vessel clean-out
Product Code Description Price
POA
