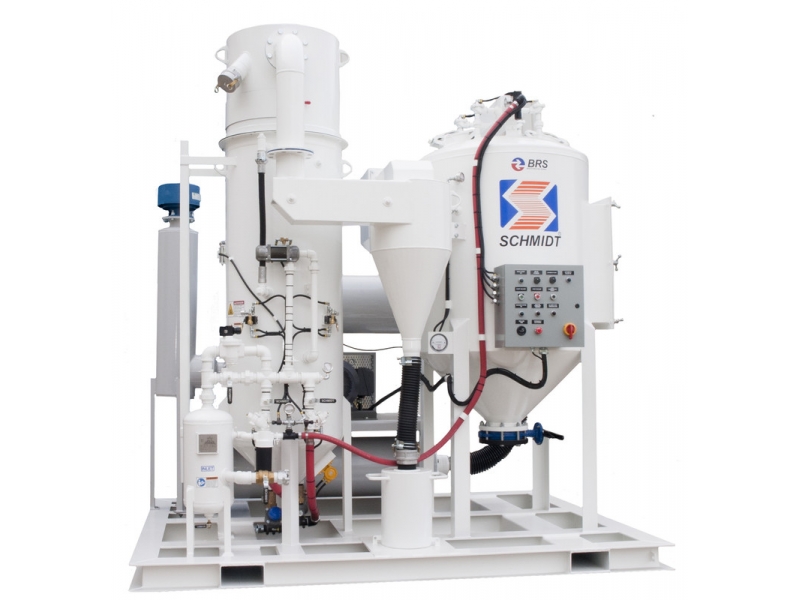

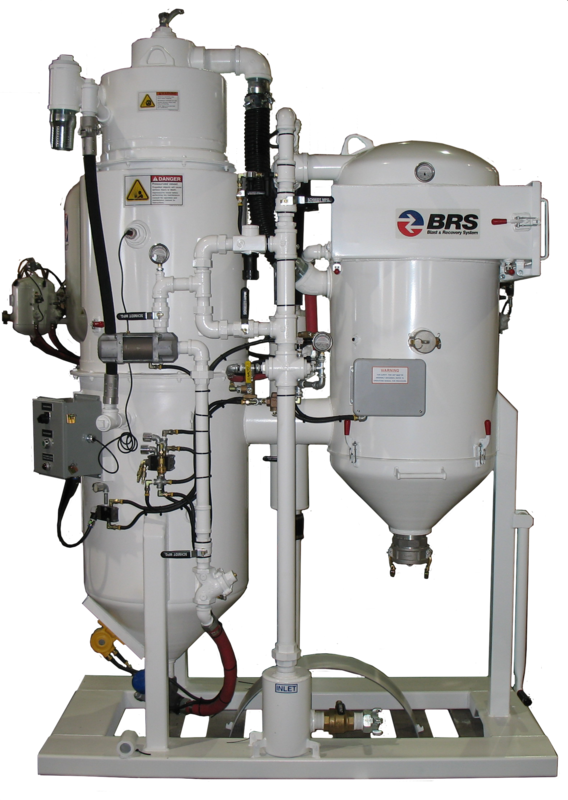

Schmidt Blast and Recovery System
Designed for use when open-air blasting is prohibited, when it is not possible or is impractical, Schmidt's Blast and Recovery System (BRS) blast and recover spent abrasive, contaminants and dust at the same time. They can also be used to blast and then vacuum abrasive independently.
While the BRS will never replace open-air blasting because of lower overall productivity, instances where the jobsite is sensitive to dust and contaminants or when open-air blasting is prohibited, not possible or isn't practical, the BRS can provide the solution.
Guaranteed Quote
within 48 Hours
• Blast where open-air blasting is prohibited or is not possible or practical

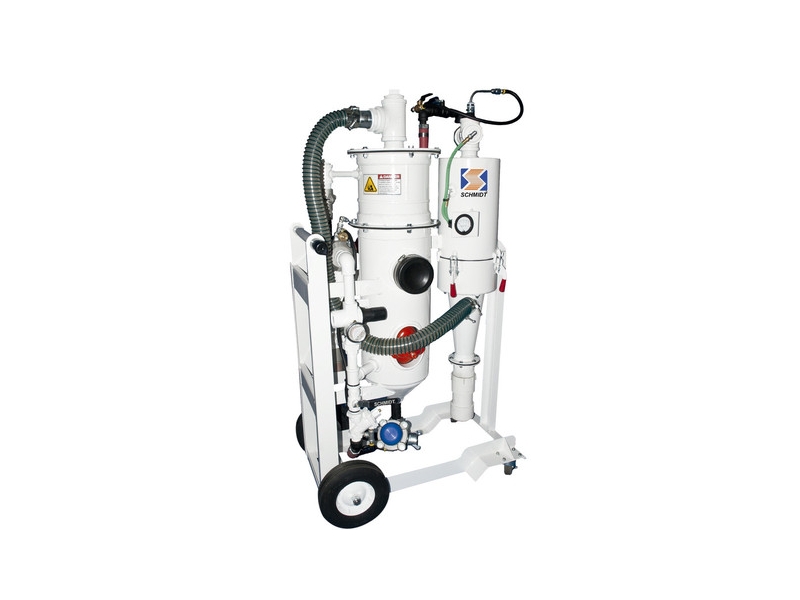

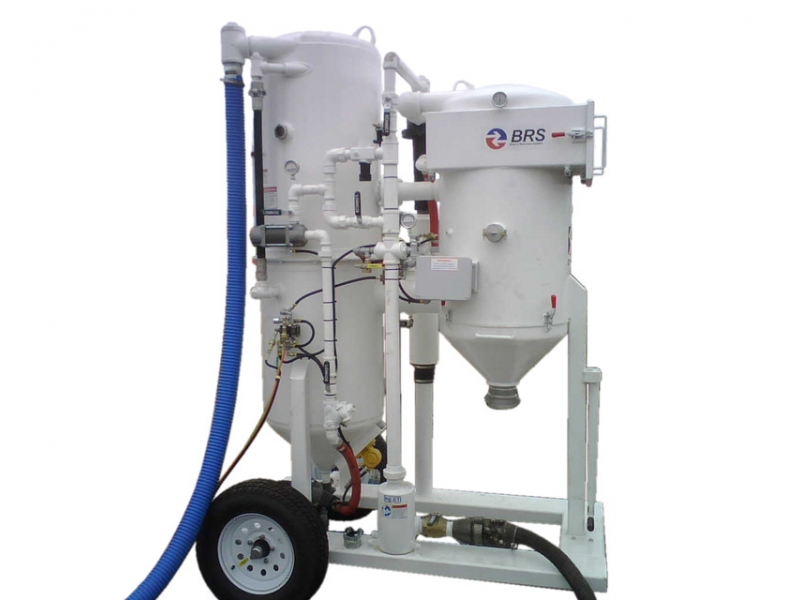

• Portable or skid-mounted 2.0, 3.5 and 6.5 cu ft models

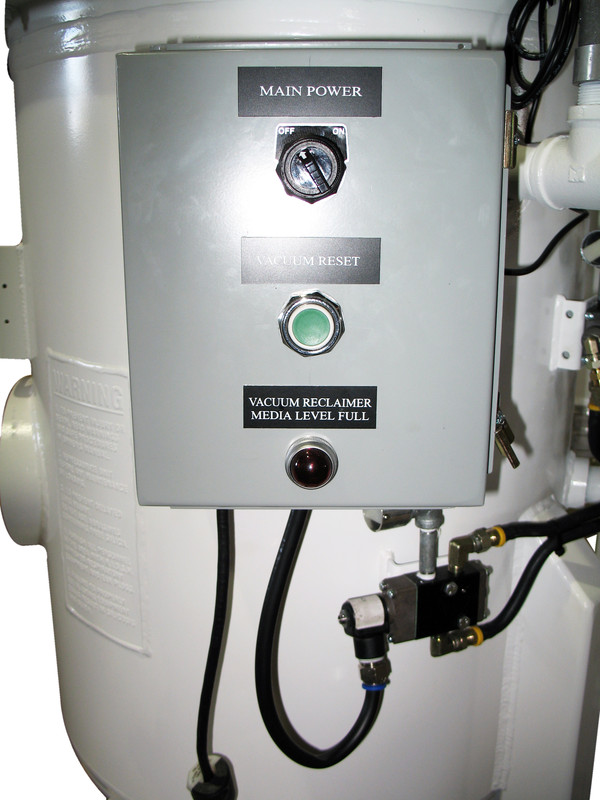

• Pneumatic or optional electric remote controls
• Blast pressure regulator with bypass piping allows blasting at lower pressures
• Urethane eductor (pneumatic vacuum pump) with 150, 225, 350 or 440 CFM nozzle
• Cyclonic dust separator/media reclaimer
• Dust collector (dry or dry-HEPA) with automatic pulse jet to prevent clogging
• Easy, quick-open hatches for access to cartridges and filters
• Optional differential pressure gauge (dust collector)
• Moisture separator and media vibrator for smooth, even flow of abrasive
• TVII abrasive metering valve (urethane sleeve)
• Tungsten Carbide TVII sleeves available
• Optional adjustable air wash for improved media cleaning
• Optional remote abrasive cutoff for cleaner start/stop
• Optional electric vacuum available
- Maximum working pressure: 150 psig at 250°F
- Minimum metal temperature: -20°F at 150 psig
- Blast hose size: Up to 1 1/2"
