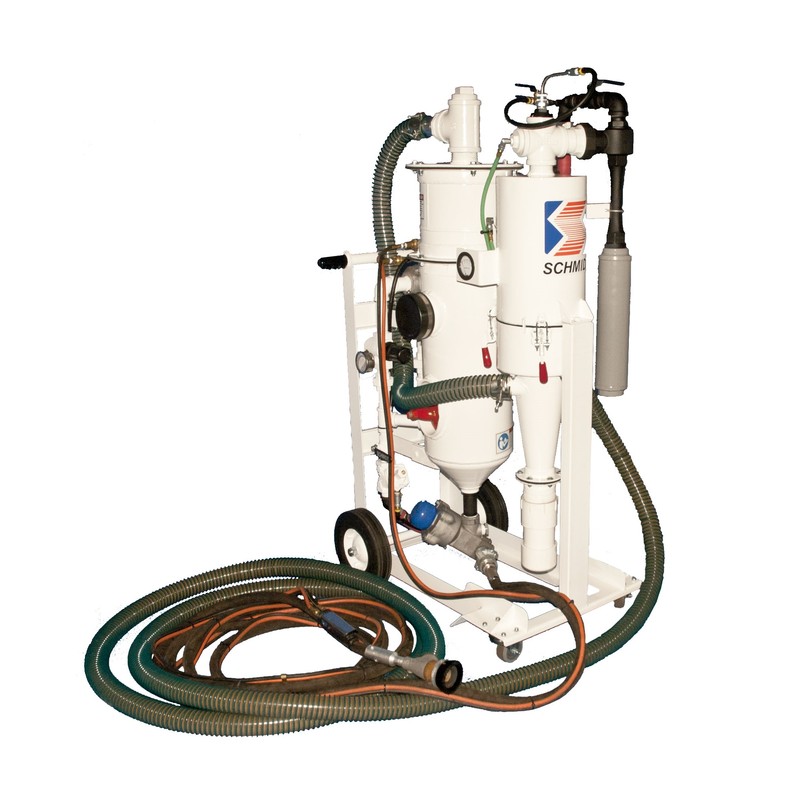

Schmidt Mini Blast and Recover System

Schmidt's Mini Blast and Recovery System (miniBRS) is a quick to set up, compact and easily maneuverable abrasive blaster that allows the operator to blast and recover at up to 200 feet away from the unit. The miniBRS comes complete with everything needed to blast, recover contaminants and handle dust and debris. All you need to do is add your preferred abrasive and a compressed air feed.

Unlike other systems on the market, the miniBRS has an ergonomic design, lightweight and durable blast head, smaller diameter and lighter weight hoses that are sized to match the system, making it exceptionally easy and comfortable to use.

Designed to deliver powerful performance over a range of blasting pressures in a compact package, the lightweight work head reduces operator fatigue and helps ensure the correct positioning of the blast head against the substrate which results in higher productivity output levels.

Guaranteed Quote
within 48 Hours

Request a Quote

  • 150 psi-rated, 0.3 cu. ft. pressure vessel with integral media screen
  • Blast pressure regulator
  • 75 cfm eductor (pneumatic vacuum pump)
  • Airwash reclaimer
  • Secondary cyclonic dust separator
  • Dust collector with polyester filter cartridge
  • Differential pressure gauge on the dust collector to alert operator to clean filter
  • Blowdown wand for cleaning filter
  • 25' by 1/2" blast hose assembly
  • 25' by 2" vacuum hose
  • Blast and recover head assembly with No. 3 nozzle
  • TVII abrasive metering valve (tungsten carbide sleeve)

Optional electric deadman blast controls feature the G2E deadman.

  • Blast pattern: 3/4" to 7/8" using a No. 3 nozzle
  • Maximum working pressure: 150 psig at 250 °F (10.3 bar at 121 °C)
  • Blast hose size: 25', 1/2" diameter hose
  • Vacuum hose size: 25', 2" diameter hose
  • Electrical requirements: 12 VDC (for optional electric deadman blast controls)
  • Abrasive capacity: Blast vessel - 0.3 cu. ft. (8.5 L) Reclaim hopper - 0.3 cu. ft. (8.5 L)
  • Vacuum system: Pneumatic vacuum pump (eductor)
  • Dust collector filter: 6" diameter, dry poly-bond
  • Weight: 335 lbs/152 kg; 450 lbs/205 kg with controls
  • Dimensions: 60" H x 22" W x 34" L
Product Code Description Price
POA
